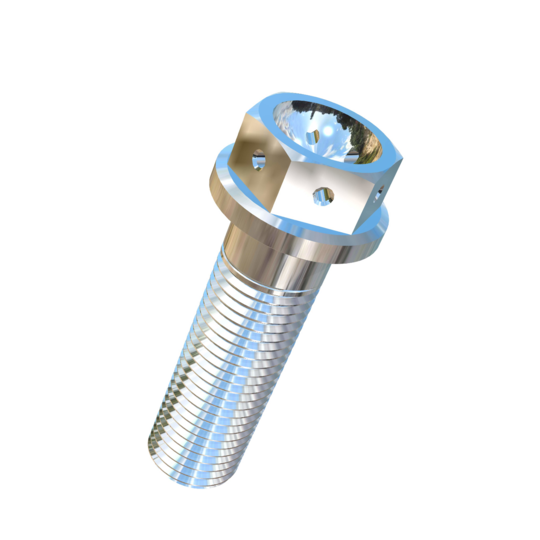

0015453 Titanium 3/8-24 X 1-1/4 UNF Allied Titanium Hex Head Flange Bolt (No Dimple) with Reduced Safety Wire Drilled Head

Item # 0015453: 3/8-24 X 1-1/4 UNF Allied Titanium Hex Head Flange Bolt (No Dimple) with Reduced Safety Wire Drilled Head, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish

These bolts are TRUE TITANIUM(TM), specifically Grade 5 (Ti-6Al-4V). Grade 5 titanium is a common aerospace alloy that has been used in commercial aircraft for decades. The bolts have a flange under the head for distributing the bolting force, but DO NOT have a dimple in the top of the head that designates high strength. The heads are drilled for safety wire and reduced in diameter from what they would be normally be for a given shank diameter. This reduction in size is done for applications where there are head clearance issues, or to reduce weight even further beyond the weight savings that titanium offers. With a minimum yield strength of 128,000 psi (880 Mpa), they are designed to be safety wired in structural applications for engines, race cars, powerboats, machinery, etc. If you are looking for high strength, or lightweight, or zero rust and want a reduced flange head that can be safety wired, these bolts will work perfectly. Keep in mind, though, that there is no dimple to distinguish them from the lower strength Grade 2 (CP) titanium bolts.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.

Price: $16.63

Unit: Each

Min. Order Qty: 100

1st Qty Break: 1000

1st Break Price: 14.46

2nd Qty Break: 2500

2nd Break Price: 12.29

Please call (800) 725-8143 or (302) 249-3295 if you need help.

Ship Kg: 0.0126

Measure: Inches

Diameter: 0.375

Pitch: 24

Length: 1.25

Group: Fasteners

Category: Fastener, Bolt

Sub Category: Hex Flange Bolt with Reduced Safety Wire Head

Tolerance: +0/-0.004 inch

UPD # Ti5FBHFRSI0.375-24X1.25P

Index: Bolt, Hex Head Flange with Reduced Safety Wire Drilled Head, Grade 5 Titanium (No Dimple)
