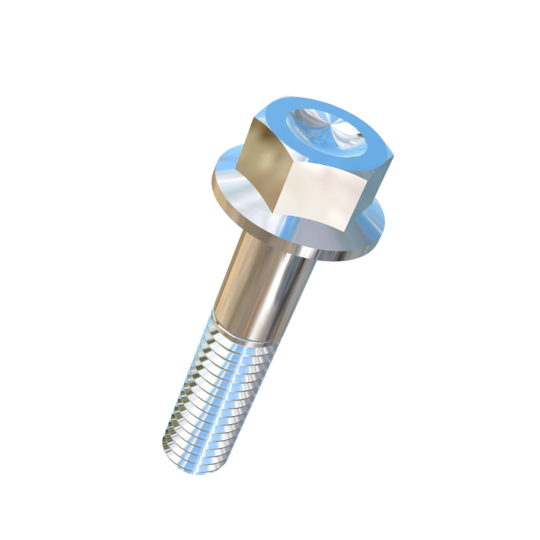

| 3/8-16 X 1-3/4 UNC Allied Titanium Hex Head Flange Bolt, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish |
 |
| |
Flange bolts have a wide flange under the head of the bolt that acts as built in washer. This serves to distribute the pressure of the bolt to a larger bearing surface over the part being secured, reducing the chance of damage to the part. Common uses include cylinder heads, chassis, bolting through slots as well as thinner metal.
These flange bolts are Grade 5 (Ti-6Al-4V) titanium and are TRUE TITANIUM(TM). They are about 3 and a half times stronger than stainless steel, 44% lighter and completely corrosion free, even in saltwater. These aerospace grade bolts have a minimum yield strength of 128,000 psi (880 Mpa). If you are a race car driver, these are the flange bolts you want holding your car together. If you are a sailboat cruiser, these are the bolts you want holding your rig up.
TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc. |
|
| $16.55 |
| Each |
| 100 |
| 1000 |
| 14.39 |
| 2500 |
| 12.23 |
| |
Please call (800) 725-8143 or (302) 249-3295 if you need help. |
|
| 0.0213 |
| Inches |
| 0.375 |
| 16 |
| 1.75 |
| Fasteners |
| Fastener, Bolt |
| Hex with Flange |
| Dimpled |
| +0/-0.011 inch |
| Ti5FBHFID0.375-16X1.75P |
| Bolt, Hex Head Flange, Grade 5 Titanium |
|
|
|
|
